V-Type Regulation Ball Valve

You are here: Home » Products

V-Type Regulation Ball Valve

Carbon steel V-Ball (port) valve in sizes 1/4" to 6" available in flanged, NPT, threaded and socket weld connections. ANSI leak class, ASME B16.10 and stainless steel ball and stem.
E-mail Us PDF Download
【Prev Products】 【Next Products】

OFFERED IN FLANGED, NPT (THREADED) SOCKET WELD, BUTT WELD AND TRI CLAMP

  • V-Ball valves available between 1/4" and 6" in size
  • Available in wafer/threaded and flanged body styles
  • High strength carbon steel valve body
  • Available in: ANSI flanged, NPT (threaded) socket weld, butt-weld and tri-clamp
  • Recovery rate for low pressure drops

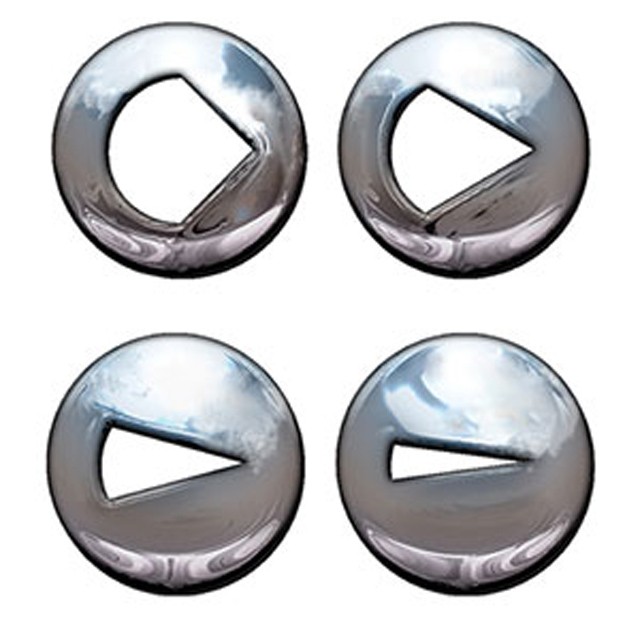

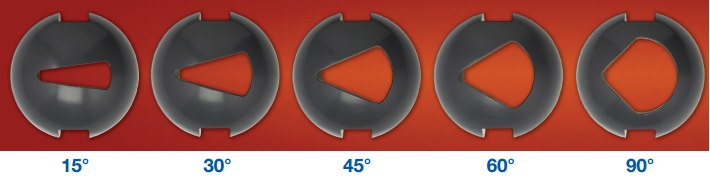

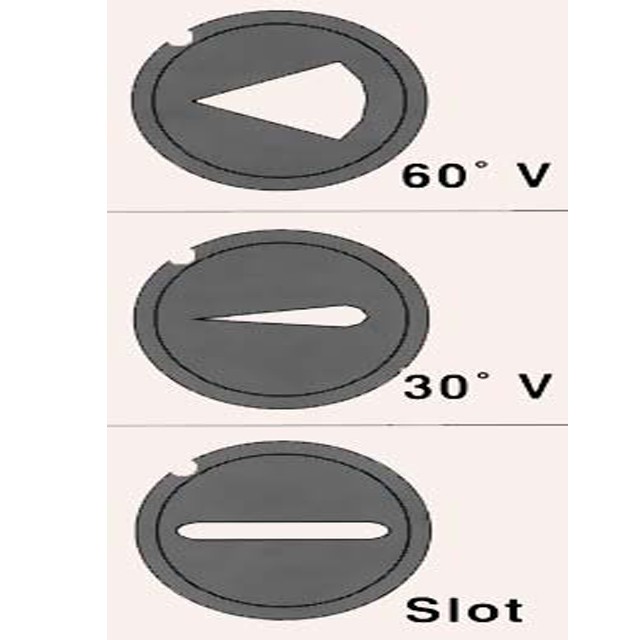

  • V "notch" available in 30, 60 and 90 degree options

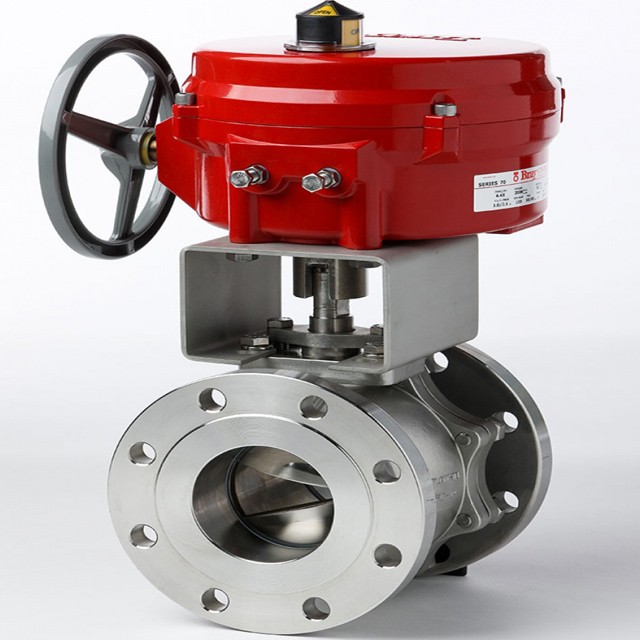

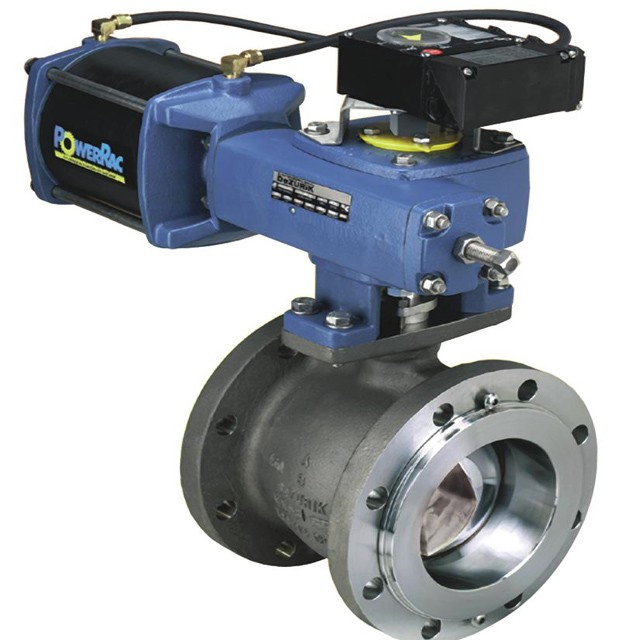

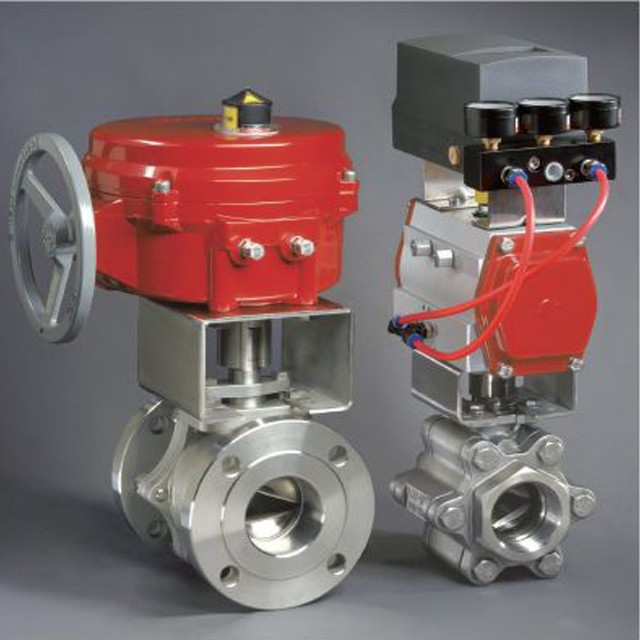

  • Available in manual or actuated mode
  • ANSI 150 and ANSI300 valve body rating
  • Precise flow control in any industry
  • Actual valve is spring loaded; up to 400F
  • Light weigh, up to 30% lighter than comparable valves
  • Low cost with comparable valves of similar pressure drops
  • Low Flow Control - Cv as low as 0.07
  • The V "notch" allows for much freer flow with better characteristics
