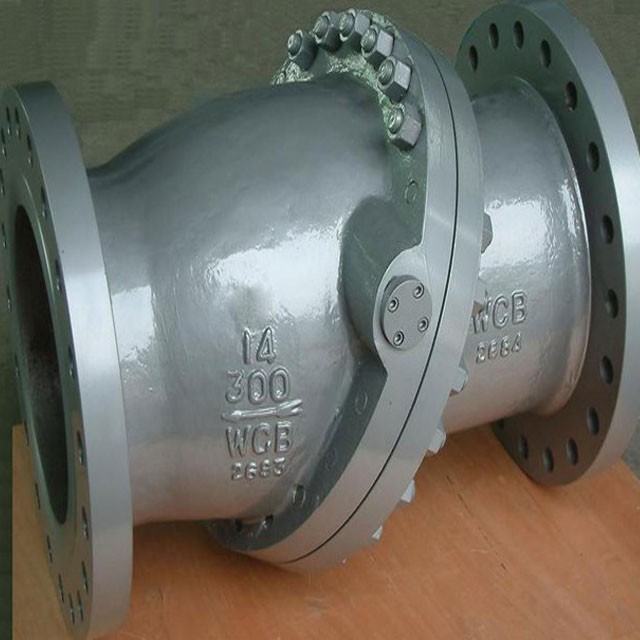

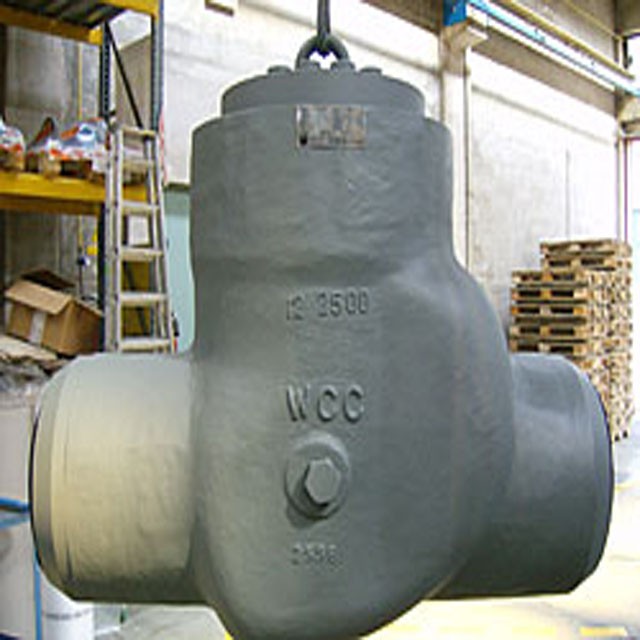

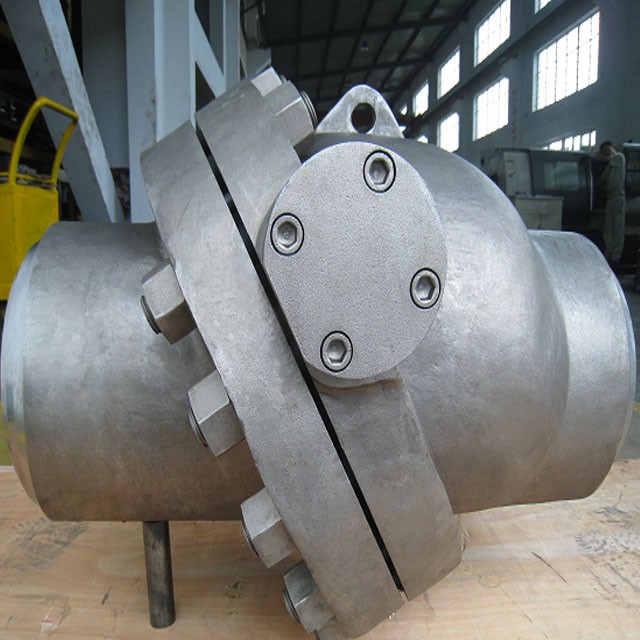

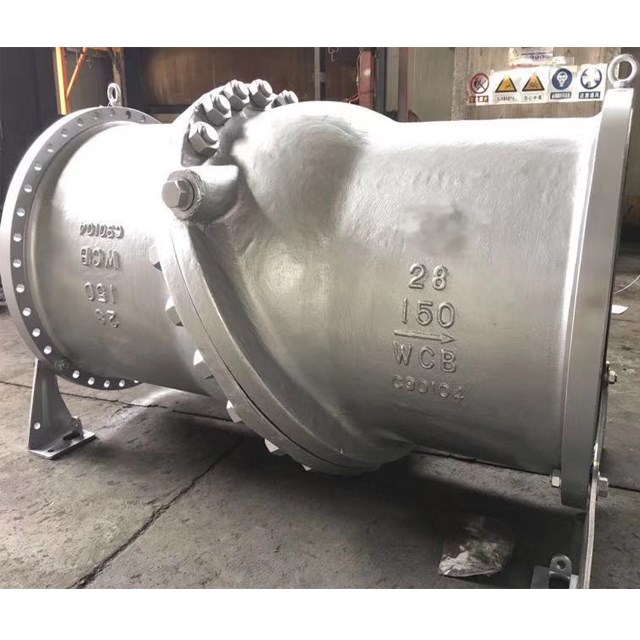

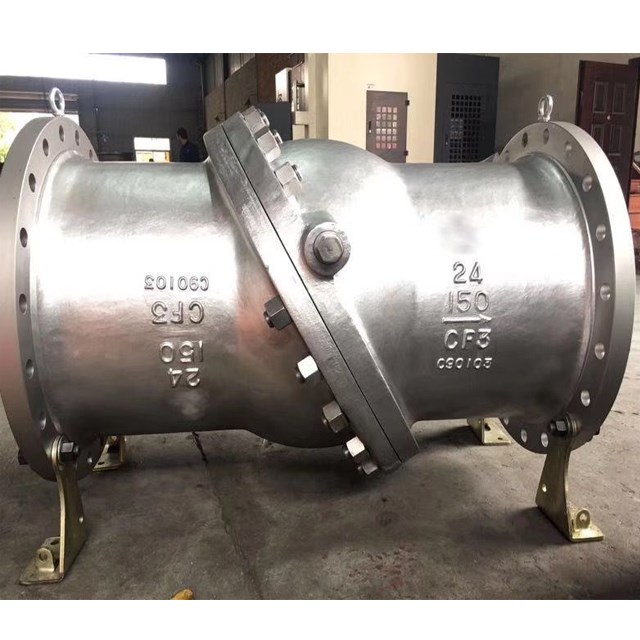

Tilting Disc Check Valve

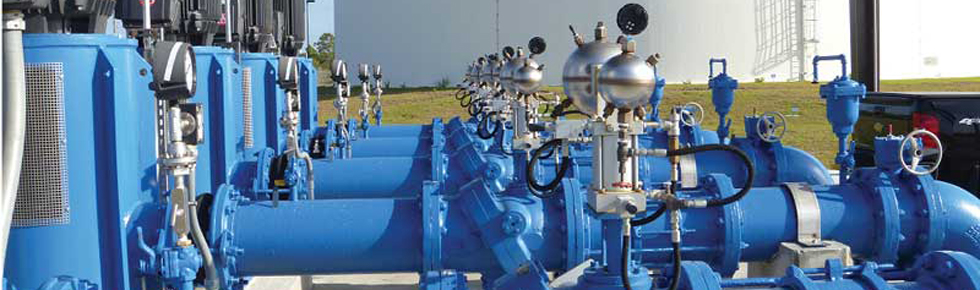

The Tilting Disc Check Valve is an excellent choice for raw water, cooling water and treated water/wastewater applications. Its streamlined body contouring, flow area 40% greater than nominal pipe size and hydrodynamic disc combine to provide the lowest headloss of any check valve produced today


【Prev Products】	【Next Products】

Parameters

Lowest head loss check valve available chart
Energy efficient - cost savings table
Available in Sizes 4" - 60"

ANSI Classes 150LB ，300LB ，600LB ，900LB ，1500LB

Body Materials: Cast iron, ductile iron, carbon steel or 316 stainless stee

High Performance Capabilities
Interior epoxy coating standard
Independently certified flow and cycle tests
Flow area equal to 140% of nominal pipe size
Manufactured under a certified ISO 9001 quality system

Features

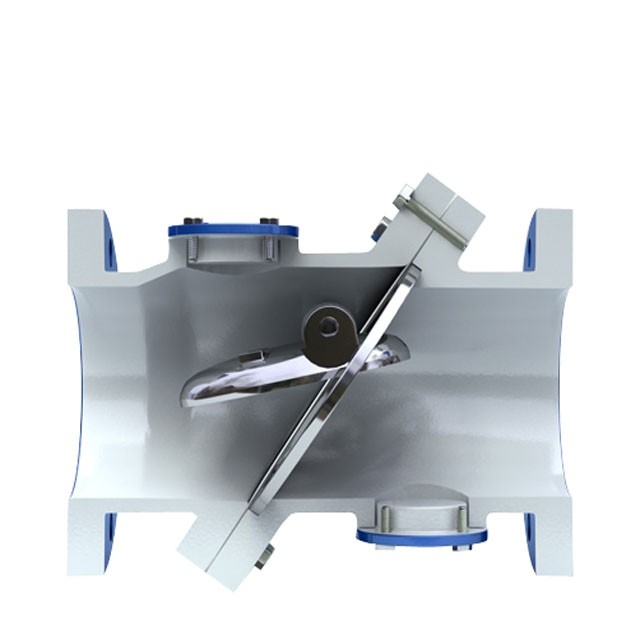

40° Short Disc Stroke - provides quick closing and reduces water hammer Lift & Tilt Seat Action - prevents wear
Hydrofoil disc design provides disc stabilization

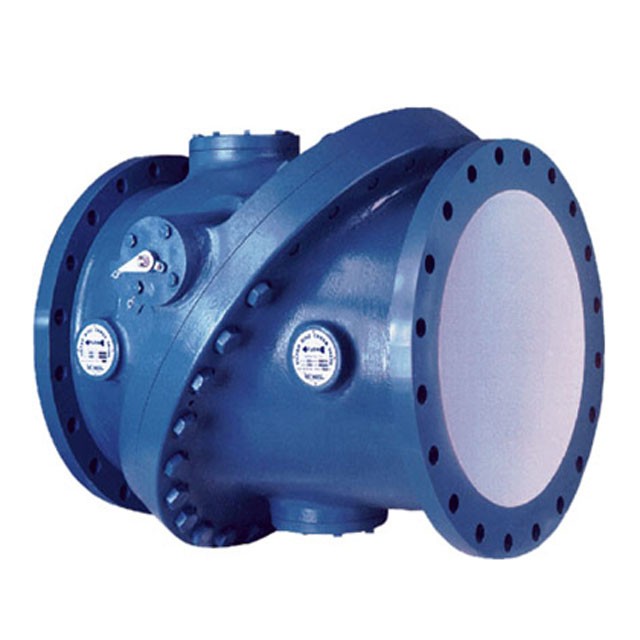

Disc Position Indicator - for indication and SCADA compatible switches indicated open and closed

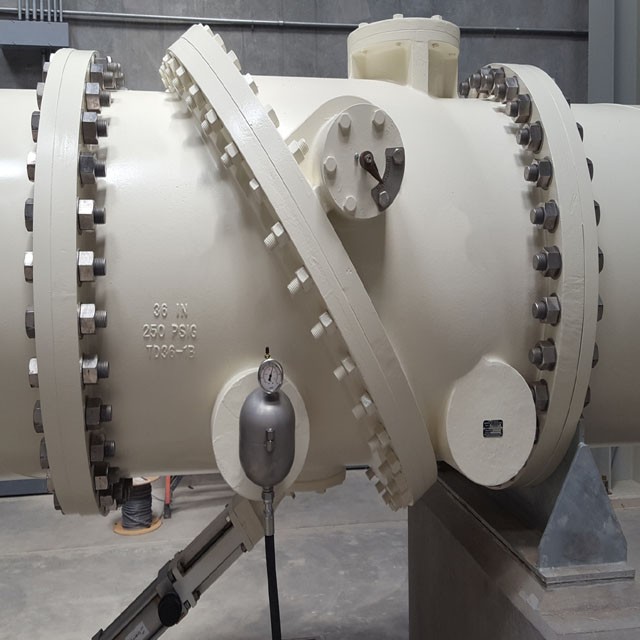

Inspection Ports - allow upstream/downstream seat access, mounting ports for dashpots
Bottom Mounted Oil Dashpot - prevents slammingTop Mounted Oil Dashpot - prevents slam and surges
Quick disconnect coupling for ease of dashpot removal
Drop tight seating - meets AWWA C508
Lift & Tilt Disc Action, Disc Stabilization and Material Selection - combine to provide long valve life
Dual by-pass - for backwashing screens and draining
