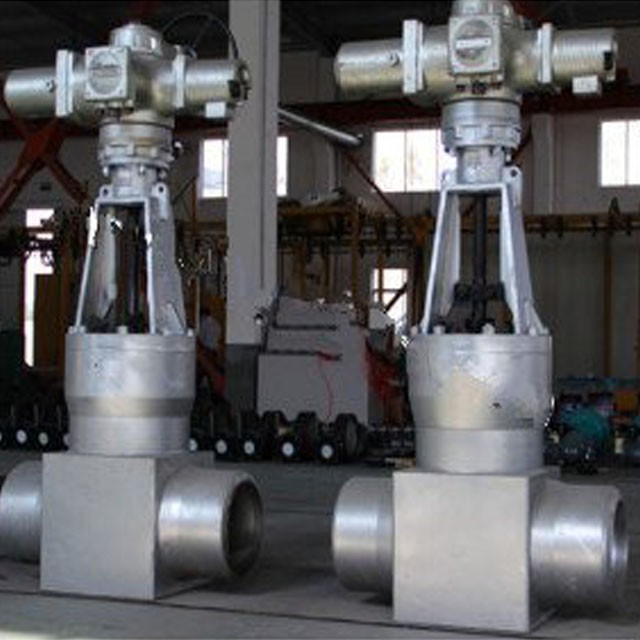

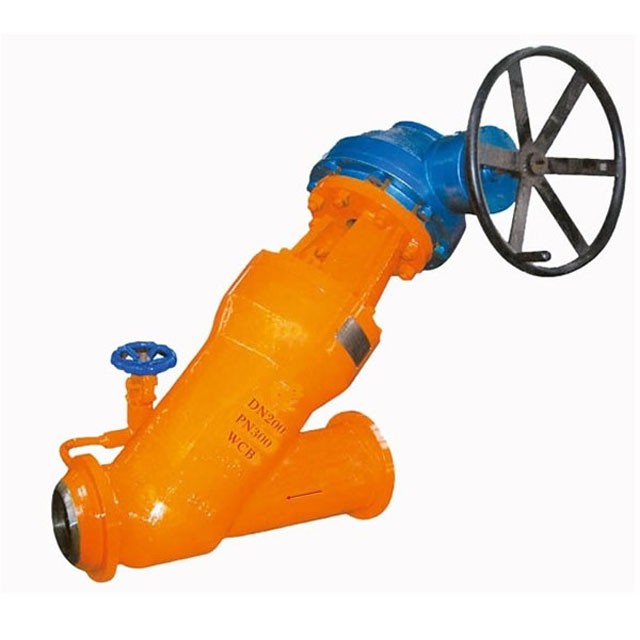

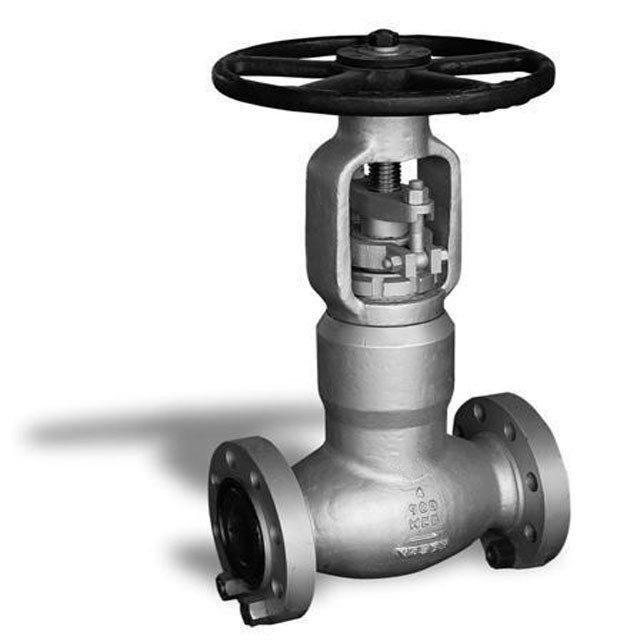

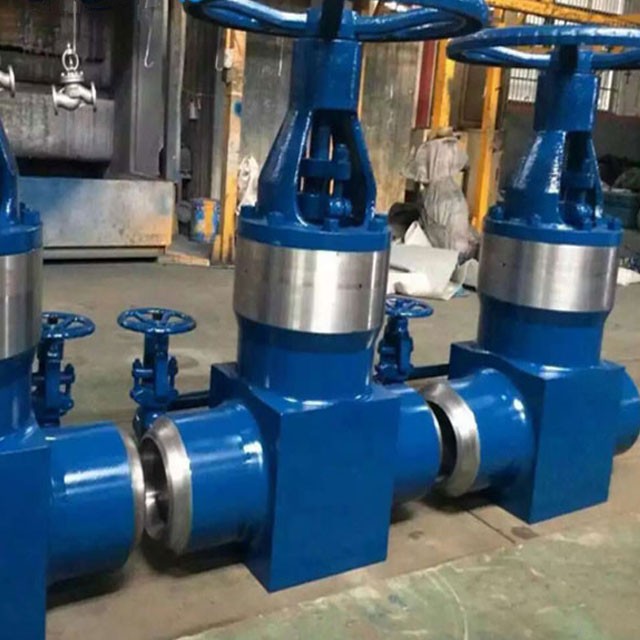

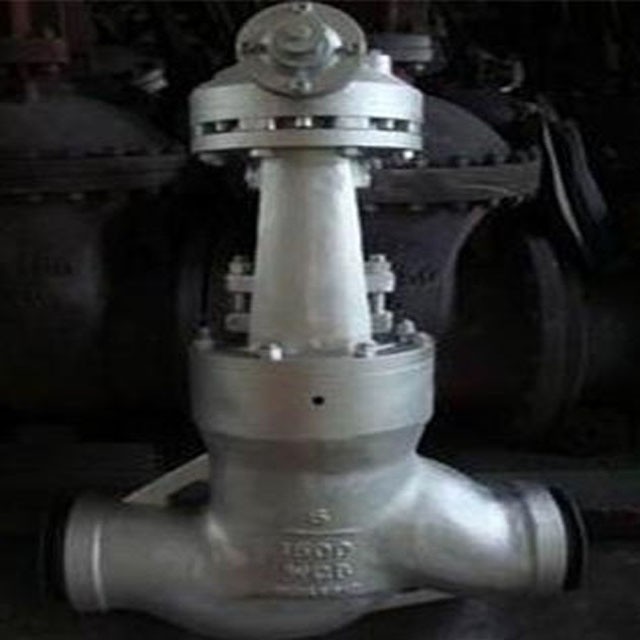

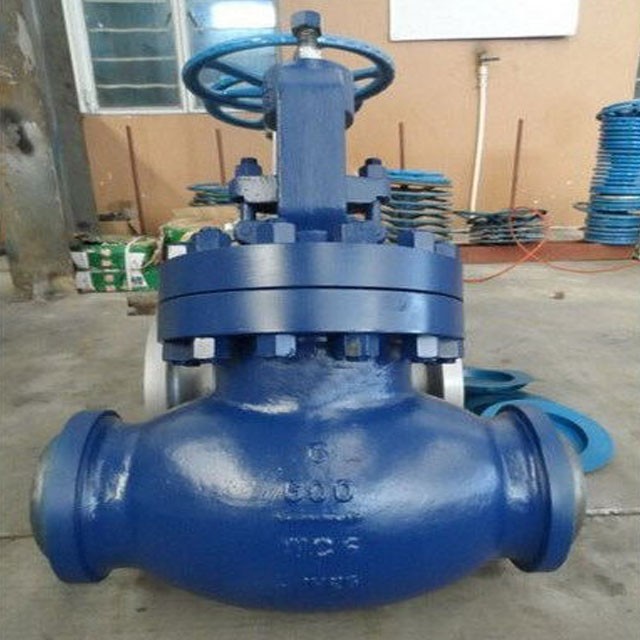

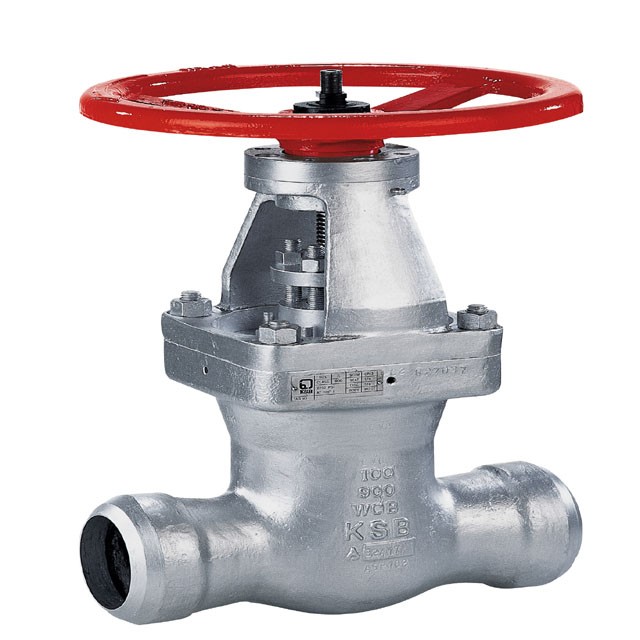

Power Station Globe Valve

Features

2.Globe valve are suitable for “blow down” applications for a high differential pressure across the valve when it is partially opened.

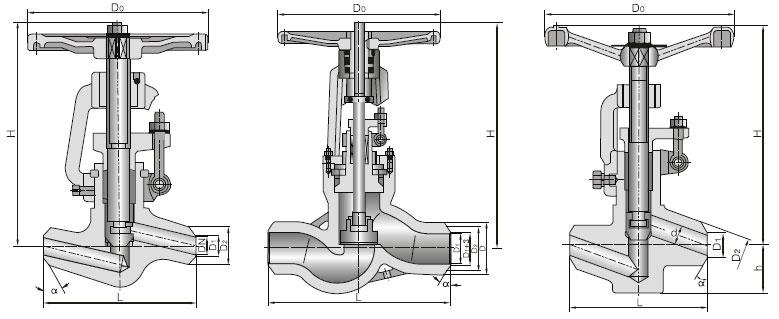

Parts features of Globe valves:

Yoke: Two arms design for rigidity and accessibility
Gland bolt: Eyebolt type for easy repacking
Gland and Gland flange: Self-aligning type
Expanded Graphite Seal Ring: Excellent seal performance at low and high Pressure, even under severe pressure and temperature transients
Back Seat: In case of packing leakage, tight backseat sealing achieved with less seating force due to the differential in mating angles between the stem shoulder and the hard faced bonnet backseat.
Stem: Smooth finish ensures seal and smooth operation; upper stem threaded by machine for toughness and increased durability.
Bonnet with cooling chamber: Increases the packing life and seal ability by maintaining packing at normal temperature.

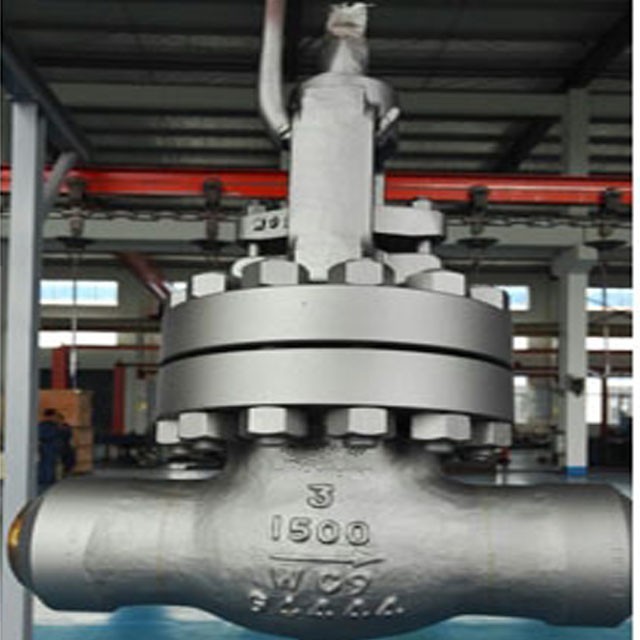

Bonnet pressure seal part: Pressure seal design incorporates a graphite seal which become tighter as the pressure increases.
Disc: Improved seal performance under the high pressure and temperature by use of a plug type disc.
Seat ring: Renewable and easy to replace seat ring are seal welded to minimize distortion from body stress.
Seat surface: Hard faced seat ensures long service life, better resistance to heat, corrosion and erosion.
