Knife Gate Valve

Product description

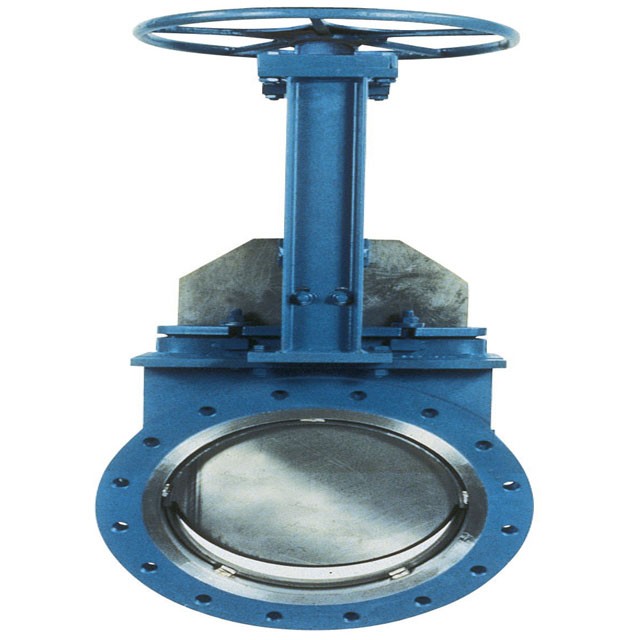

knife gate valves – A Series.

Unidirectional wafer‐design knife gate valves. One‐piece cast body with guides to support gate and seat wedges. Provides high flow rates with low pressure drop. Various seat and packing materials available. Face‐to‐face dimension in accordance with CMO standard. An arrow is marked on the body indicating the flow direction. This knife gate valve is suitable for liquids that contain a maximum of 5% suspended solids.

Utilization

If it is used for dry solids in gravity feed
applications it should be installed with the arrow on the body pointing
in the opposite direction to the flow. Designed for applications such as:

Paper Industry, Mining, Silo emptying, Chemical plants, Bumping Food, Industry Sewage treatment.

Sizes

Standard manufacturing sizes:

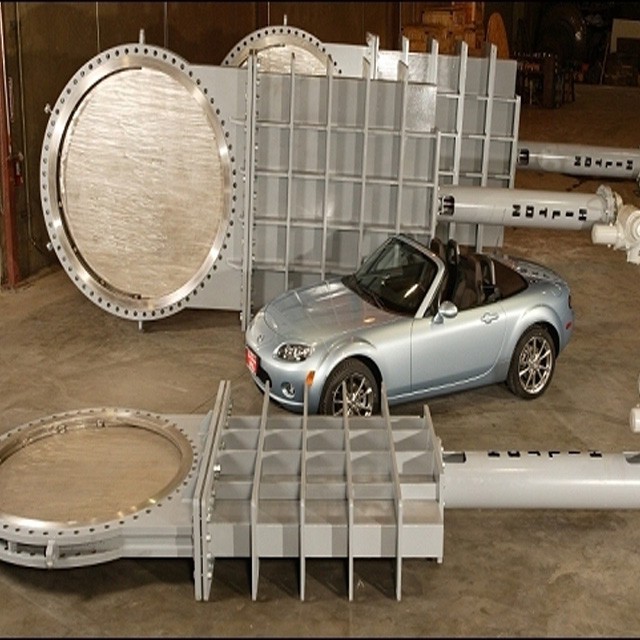

From DN50 up to DN2000

Working pressures

• DN 50 a DN 150: 10 (kg/cm2)
• DN 200: 8 (kg/cm2)
• DN 250 a DN 300: 6 (kg/cm2)
• DN 350 a DN 400: 5 (kg/cm2)
• DN 450 a DN 600: 3 (kg/cm2)

• DN 700 a DN 1200: 2 (kg/cm2)
•
